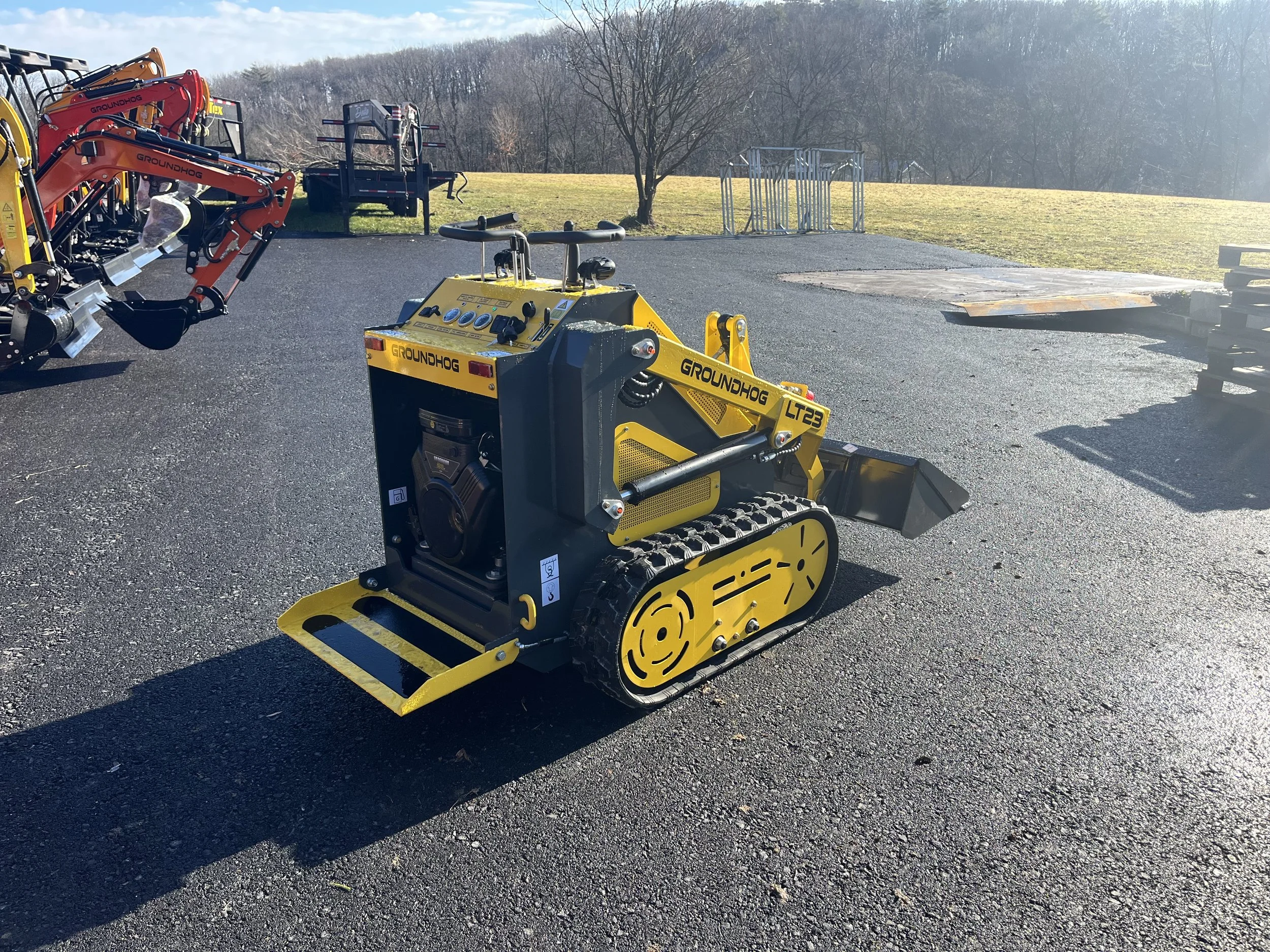

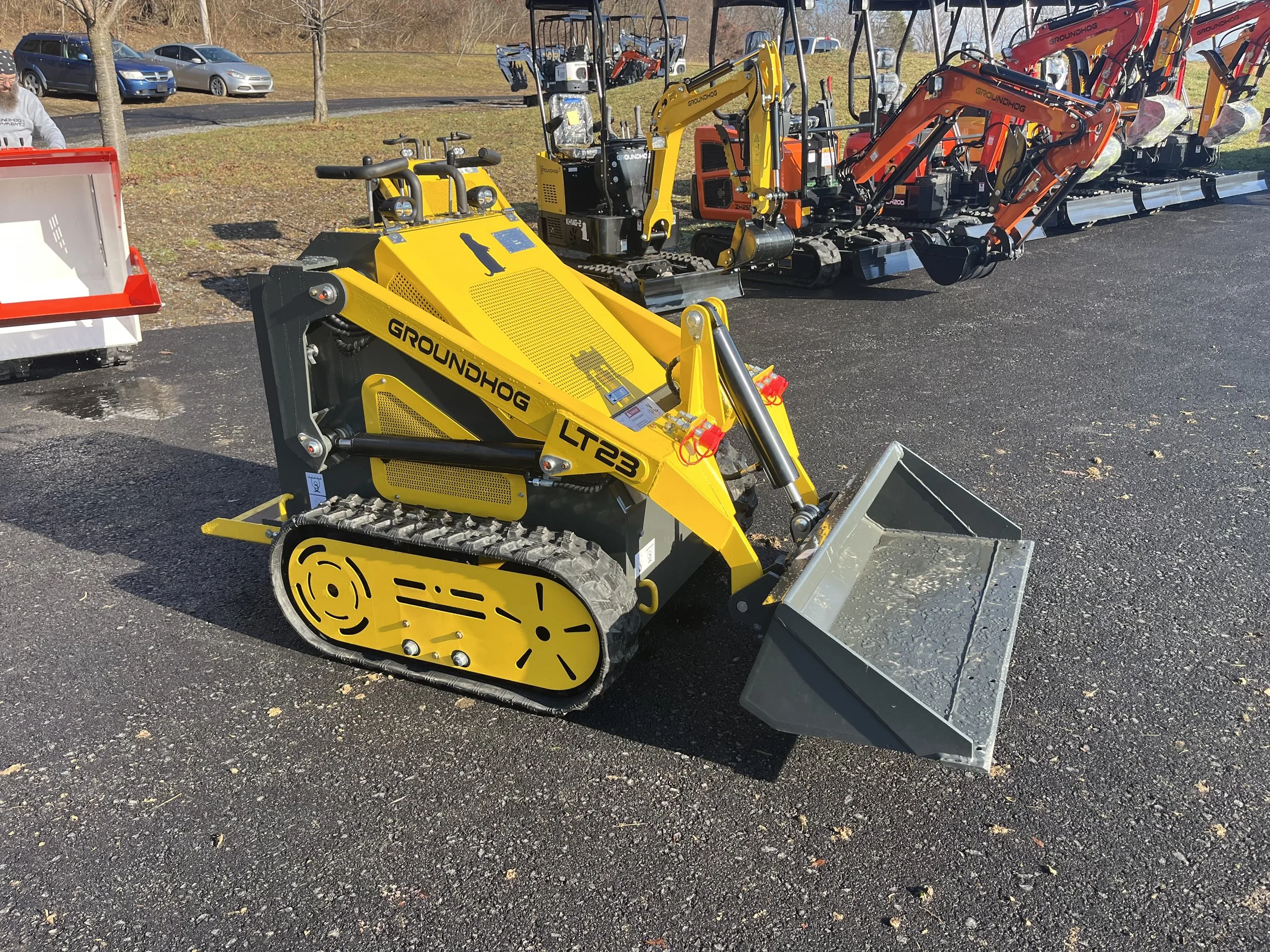

LT23
Starting at $10,900
MSRP on entry package, transportation and preparation fees may vary based on selection.
All LT23 models come equipped with a 23 HP Briggs and Stratton Vanguard gas engine, operator platform, 2200 lb. operating weight, and 700 lb. lift capacity.
-
Max Working Height (A) 6′ 11″
Max Pin Height (B) 6′ 1″
Max Dump Height (C) 4′ 9″
The Highest Point Discharge Discharge (D) 1′ 3″
Bucket Swing Angle (γ) 55°
Bucket Unloading Angle (β) 30°
Angle of Departure (α) 8°
Total Height (H) 3’11”
The Height From the Ground (F) 3.5″
Wheelbase (G) 2′ 1″
No Bucket Length (J) 5’9″
Total Width (W) 3′ 5″
Bucket Width (K) 3′ 3″
Total Length (L) (with bucket) 7′ 3″
Turning Radius (R) 4′ 3″
Engine Rated Power 21 HP/ 23 HP
Engine Rotating Speed 3600 rpm
Noise 95 Db
Hydraulic Pressure 17 Mpa
Cycle Time Raise 4.27 s Dump 1.34 s Lower 3.31 s
Load Weight 700 lbs
Bucket Capacity 0.15 m3
Max Lifting Power 1400 lbs
Speed 0-5.5 km/h
Operating Weight 2200 lbs
Tire Type Track
-
Powertrain items consist of the engine, both drive motors, hydraulic pump, swing motor, and central pivot valve body. Warranty does not cover wear items such as lines, cylinders, tracks, pins, blades, seat, undercarriage, etc.
